TPCH-Klustron vs Greenplum

测试概况

通过TPC-H测试工具，分别对Klustron v1.3.1和Greenplum Database 7.0.0版本进行测试，获取性能结果，结果显示在数据量为100G时，Klustron相对Greenplum 有8倍的性能提升；数据量为200G时，Klustron相对Greenplum 有3.5倍的性能提升；数据量为500G时，Klustron相对Greenplum 有1.5倍的性能提升。

测试环境

服务器规格配置

共三台机器：192.168.0.17、192.168.0.18、192.168.0.19，每台机器的配置如下：

操作系统：CentOS Linux release 8.5.2111
CPU：AMD Ryzen 9 7950X 16-Core Processor，hread(s) per core: 2，32核
内存：128GB
磁盘：nvme 1.8T *1
网络：Speed: 10000Mb/s

软件版本

软件名称	软件版本
Klustron	v1.3.1
Greenplum	v7.0.0
TPC-H	v3.0.0

集群环境

Klustron

由于TPC-H是只读的性能测试，因此此集群并未部署备节点,并且关掉了fullsync(enable_fullsync=false),并且刷盘参数设置为

innodb_flush_log_at_trx_commit=2;
sync_binlog=0;

这并不会影响测试结果的准确性和公平性，也不会给Klustron的性能带来有利的优势。Klustron的XPanel组件，Cluster_mgr集群和metashard_cluster也都部署在这3台服务器上面，这些组件的性能开销很小，不会显著消耗服务器资源,也不会显著降低Klustron的TPC-H性能。

节点类型	IP	PORT
计算节点	192.168.0.19	23001
Storage-shard1-Master	192.168.0.17	33501
Storage-shard2-Master	192.168.0.18	33503
Storage-shard3-Master	192.168.0.19	33505
Cluster_mgr	192.168.0.17/18/19	23501
Metedata_cluster	192.168.0.17/18/19	23301
XPanel	192.168.0.18	10024

集群说明：

计算节点：部署一个计算节点。
存储节点：3个shard，每一个shard为单主，三个shard的单主分别分布在这三台机器上。
管理节点和元数据集群：管理集群有三台机器组成，为3个节点，1主两备。

Greenplum

节点类型	IP	PORT
Master	192.168.0.17	54321
Segment1	192.168.0.18	6000
Segment2	192.168.0.19	6000

配置参数

Klustron

计算节点：

alter system set statement_timeout=6000000;
alter system set mysql_read_timeout=1200;
alter system set mysql_write_timeout=1200;
alter system set lock_timeout=1200000;
alter system set log_min_duration_statement=1200000;
alter system set effective_cache_size = '48GB';
alter system set work_mem  = '5GB';
alter system set wal_buffers='64MB';
alter system set extension.aggregate_ignore_work_mem=false;
alter system set enable_nestloop=false;
alter system set extension.max_custom_indexscan_parallelism=16;
alter system set extension.custom_hashjoin_parallelism=32;

注意：调整后需重启计算节点。

存储节点：

mysql -h 192.168.0.17 -P 33501 -upgx -ppgx_pwd
mysql -h 192.168.0.18 -P 33503 -upgx -ppgx_pwd
mysql -h 192.168.0.19 -P 33505 -upgx -ppgx_pwd

分别设置如下参数：

set persist innodb_buffer_pool_size=64*1024*1024*1024;
set persist lock_wait_timeout=1200;
set persist innodb_lock_wait_timeout=1200;
set persist fullsync_timeout=1200000;
set persist enable_fullsync=false;
set persist innodb_flush_log_at_trx_commit=2;
set persist sync_binlog=0;
set persist max_binlog_size=1*1024*1024*1024;

Greenplum

关闭auto_vacuum防止vacuum进程突然介入影响TPC-H性能。

在Master节点执行

gpconfig -c shared_buffers -v 48GB
gpconfig -c statement_timeout -v 6000000
gpconfig -c lock_timeout -v 1200000
gpconfig -c log_min_duration_statement -v 1200000
gpconfig -c effective_cache_size -v 48GB
gpconfig -c work_mem -v 5GB
gpconfig -c wal_buffers -v 64MB
gpconfig -c autovacuum -v false
gpstop -M fast
gpstart

测试结果

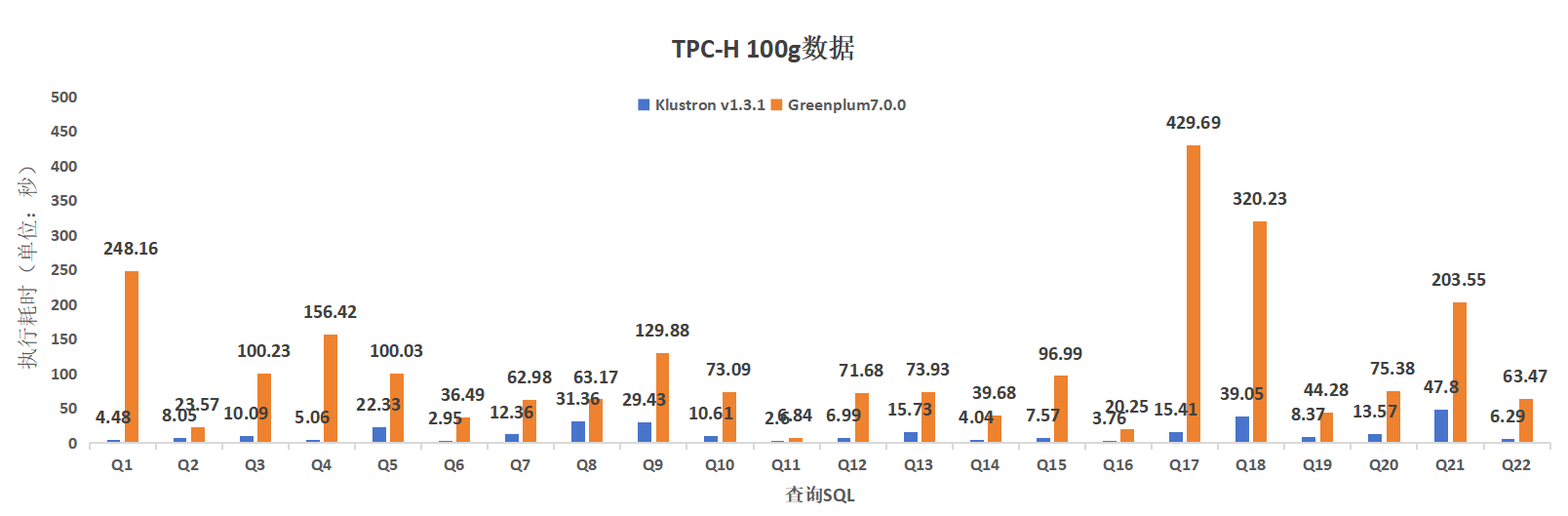

TPC-H-100G

TPC-H 数据量100G，测试结果均为测试两次择优耗时较短的一次，单位：秒。

QUERY ID	Klustron v1.3.1	Greenplum v7.0.0
Q1	4.48	248.16
Q2	8.05	23.57
Q3	10.09	100.23
Q4	5.06	156.42
Q5	22.33	100.03
Q6	2.95	36.49
Q7	12.36	62.98
Q8	31.36	63.17
Q9	29.43	129.88
Q10	10.61	73.09
Q11	2.6	6.84
Q12	6.99	71.68
Q13	15.73	73.93
Q14	4.04	39.68
Q15	7.57	96.99
Q16	3.76	20.25
Q17	15.41	429.69
Q18	39.05	320.23
Q19	8.37	44.28
Q20	13.57	75.38
Q21	47.8	203.55
Q22	6.29	63.47
总耗时	307.9	2439.98

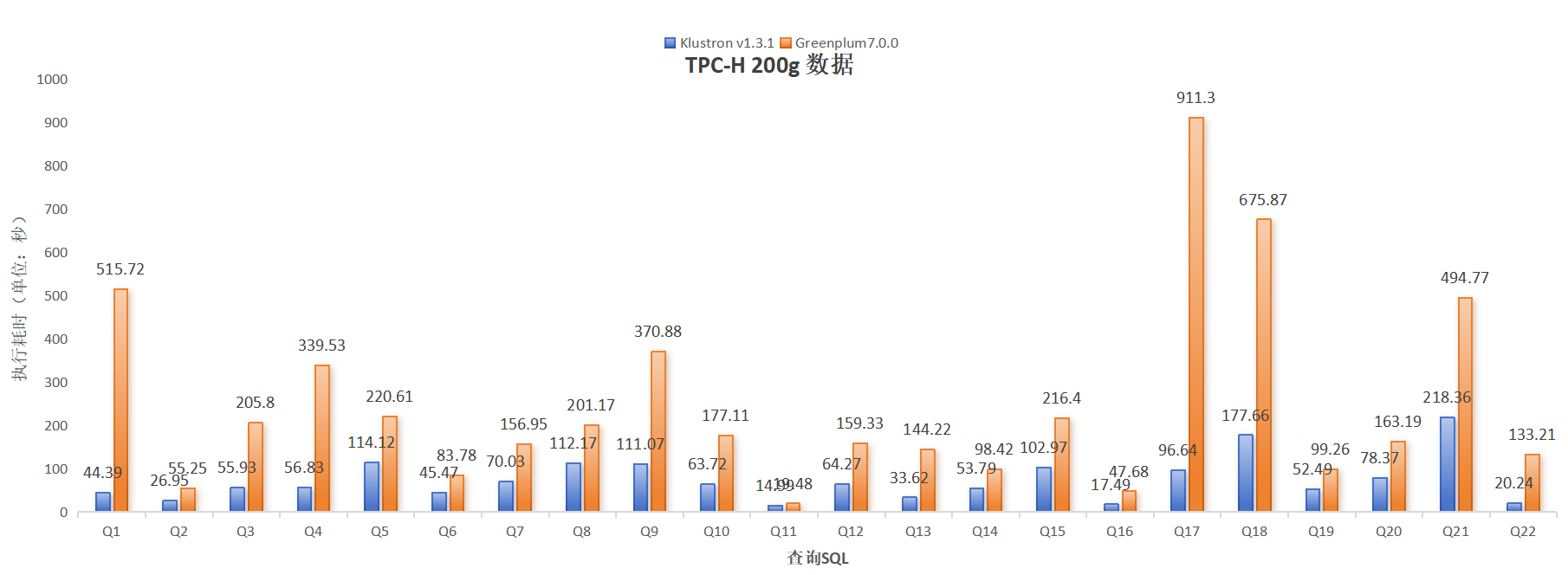

TPC-H-200G

TPC-H 数据量200G，测试结果均为测试两次择优耗时较短的一次，单位：秒。

QUERY ID	Klustron v1.3.1	Greenplum v7.0.0
Q1	44.39	515.72
Q2	26.95	55.25
Q3	55.93	205.8
Q4	56.83	339.53
Q5	114.12	220.61
Q6	45.47	83.78
Q7	70.03	156.95
Q8	112.17	201.17
Q9	111.07	370.88
Q10	63.72	177.11
Q11	14.99	19.48
Q12	64.27	159.33
Q13	33.62	144.22
Q14	53.79	98.42
Q15	102.97	216.4
Q16	17.49	47.68
Q17	96.64	911.3
Q18	177.66	675.87
Q19	52.49	99.26
Q20	78.37	163.19
Q21	218.36	494.77
Q22	20.24	133.21
总耗时	1631.57	5489.93

TPC-H-500G

TPC-H 数据量500G，测试结果均为测试两次择优耗时较短的一次，单位：秒。

QUERY ID	Klustron v1.3.1	Greenplum v7.0.0
Q1	88.79	515.72
Q2	167.71	55.25
Q3	424.11	205.8
Q4	162.17	339.53
Q5	465.63	220.61
Q6	132.41	83.78
Q7	209.25	156.95
Q8	467.98	201.17
Q9	717.72	370.88
Q10	266.68	177.11
Q11	135.14	19.48
Q12	128.81	159.33
Q13	178.35	144.22
Q14	174.23	98.42
Q15	330.5	216.4
Q16	641.42	47.68
Q17	445.27	911.3
Q18	4191.07	675.87
Q19	163.6	99.26
Q20	610.63	163.19
Q21		494.77
Q22	95.79	133.21
总耗时	10197.26	16281.12

建表语句

Klustron

Klustron-1.4 建表语法

注意本节使用的语法适用于Klustron-1.4，对于更老的版本，需要使用等价的语法来创建这些数据表，要点是要把 PART, SUPPLIER, PARTSUPP , CUSTOMER , ORDERS, LINEITEM 这几张表，都创建为hash分区表，并且每个表都有3个分区（本次测试的Klustron集群的shard数量为3。如果用户的Klustron集群的shard数量更多那么可以把这些表都创建由更多个分区，这样测试性能会更高）, 并且各个表的具有相同hash值的分区独占同一个shard，例如hash值为0、1、2的分区分别都位于shard 1 、 shard 2 、 shard 3中.

create TABLEGROUP tpch10 partitions 3 (
        partition tpch10_auto_p0 with(hash=0,shard=1),
        partition tpch10_auto_p1 with(hash=1,shard=2),
        partition tpch10_auto_p2 with(hash=2,shard=3)
);

CREATE TABLE NATION  ( N_NATIONKEY  INTEGER NOT NULL,
                            N_NAME       CHAR(25) NOT NULL,
                            N_REGIONKEY  INTEGER NOT NULL,
                            N_COMMENT    VARCHAR(152),
			    PRIMARY KEY (n_nationkey)) WITH(SHARD=all);


CREATE TABLE REGION  ( R_REGIONKEY  INTEGER NOT NULL,
                            R_NAME       CHAR(25) NOT NULL,
                            R_COMMENT    VARCHAR(152),
			    PRIMARY KEY (r_regionkey)) WITH (SHARD=all);

CREATE TABLE PART  ( P_PARTKEY     INTEGER NOT NULL,
                          P_NAME        VARCHAR(55) NOT NULL,
                          P_MFGR        CHAR(25) NOT NULL,
                          P_BRAND       CHAR(10) NOT NULL,
                          P_TYPE        VARCHAR(25) NOT NULL,
                          P_SIZE        INTEGER NOT NULL,
                          P_CONTAINER   CHAR(10) NOT NULL,
                          P_RETAILPRICE double NOT NULL,
                          P_COMMENT     VARCHAR(23) NOT NULL,
			  PRIMARY KEY (p_partkey)) PARTITION BY HASH (p_partkey) partitions 3 TABLEGROUP tpch10;



CREATE TABLE SUPPLIER ( S_SUPPKEY     INTEGER NOT NULL,
                             S_NAME        CHAR(25) NOT NULL,
                             S_ADDRESS     VARCHAR(40) NOT NULL,
                             S_NATIONKEY   INTEGER NOT NULL,
                             S_PHONE       CHAR(15) NOT NULL,
                             S_ACCTBAL     double NOT NULL,
                             S_COMMENT     VARCHAR(101) NOT NULL,
			     PRIMARY KEY (s_suppkey)) PARTITION BY HASH (s_suppkey) partitions 3 TABLEGROUP tpch10;




CREATE TABLE PARTSUPP ( PS_PARTKEY     INTEGER NOT NULL,
                             PS_SUPPKEY     INTEGER NOT NULL,
                             PS_AVAILQTY    INTEGER NOT NULL,
                             PS_SUPPLYCOST  double  NOT NULL,
                             PS_COMMENT     VARCHAR(199) NOT NULL,
			     PRIMARY KEY (ps_partkey, ps_suppkey)) PARTITION BY HASH (ps_partkey) partitions 3 TABLEGROUP tpch10;




CREATE TABLE CUSTOMER ( C_CUSTKEY     INTEGER NOT NULL,
                             C_NAME        VARCHAR(25) NOT NULL,
                             C_ADDRESS     VARCHAR(40) NOT NULL,
                             C_NATIONKEY   INTEGER NOT NULL,
                             C_PHONE       CHAR(15) NOT NULL,
                             C_ACCTBAL     double NOT NULL,
                             C_MKTSEGMENT  CHAR(10) NOT NULL,
                             C_COMMENT     VARCHAR(117) NOT NULL,
			     PRIMARY KEY(c_custkey)) PARTITION BY HASH (C_CUSTKEY) partitions 3 TABLEGROUP tpch10;


CREATE TABLE ORDERS  ( O_ORDERKEY       INTEGER NOT NULL,
                           O_CUSTKEY        INTEGER NOT NULL,
                           O_ORDERSTATUS    CHAR(1) NOT NULL,
                           O_TOTALPRICE     double NOT NULL,
                           O_ORDERDATE      DATE NOT NULL,
                           O_ORDERPRIORITY  CHAR(15) NOT NULL,
                           O_CLERK          CHAR(15) NOT NULL,
                           O_SHIPPRIORITY   INTEGER NOT NULL,
                           O_COMMENT        VARCHAR(79) NOT NULL,
			   PRIMARY KEY(o_orderkey)) PARTITION BY HASH (o_orderkey) partitions 3 TABLEGROUP tpch10;



CREATE TABLE LINEITEM ( L_ORDERKEY    INTEGER NOT NULL,
                             L_PARTKEY     INTEGER NOT NULL,
                             L_SUPPKEY     INTEGER NOT NULL,
                             L_LINENUMBER  INTEGER NOT NULL,
                             L_QUANTITY    double NOT NULL,
                             L_EXTENDEDPRICE  double NOT NULL,
                             L_DISCOUNT    double NOT NULL,
                             L_TAX         double NOT NULL,
                             L_RETURNFLAG  CHAR(1) NOT NULL,
                             L_LINESTATUS  CHAR(1) NOT NULL,
                             L_SHIPDATE    DATE NOT NULL,
                             L_COMMITDATE  DATE NOT NULL,
                             L_RECEIPTDATE DATE NOT NULL,
                             L_SHIPINSTRUCT CHAR(25) NOT NULL,
                             L_SHIPMODE     CHAR(10) NOT NULL,
                             L_COMMENT      VARCHAR(44) NOT NULL,
			     PRIMARY KEY(l_orderkey, l_linenumber)) PARTITION BY HASH (l_orderkey) partitions 3 TABLEGROUP tpch10;

Klustron-1.3以及更老版本的建表语法

CREATE TABLE NATION  ( N_NATIONKEY  INTEGER NOT NULL,
                            N_NAME       CHAR(25) NOT NULL,
                            N_REGIONKEY  INTEGER NOT NULL,
                            N_COMMENT    VARCHAR(152),
	PRIMARY KEY (n_nationkey)) WITH(SHARD=all);

CREATE TABLE REGION  ( R_REGIONKEY  INTEGER NOT NULL,
                            R_NAME       CHAR(25) NOT NULL,
                            R_COMMENT    VARCHAR(152),
	PRIMARY KEY (R_REGIONKEY)) WITH(SHARD=all);

CREATE TABLE PART  ( P_PARTKEY     INTEGER NOT NULL,
                          P_NAME        VARCHAR(55) NOT NULL,
                          P_MFGR        CHAR(25) NOT NULL,
                          P_BRAND       CHAR(10) NOT NULL,
                          P_TYPE        VARCHAR(25) NOT NULL,
                          P_SIZE        INTEGER NOT NULL,
                          P_CONTAINER   CHAR(10) NOT NULL,
                          P_RETAILPRICE DECIMAL(15,2) NOT NULL,
                          P_COMMENT     VARCHAR(23) NOT NULL,
	PRIMARY KEY (P_PARTKEY)) PARTITION BY HASH (P_PARTKEY);
CREATE TABLE PART_0 PARTITION OF PART FOR VALUES WITH (MODULUS 3, REMAINDER 0) WITH (shard = 1);
CREATE TABLE PART_1 PARTITION OF PART FOR VALUES WITH (MODULUS 3, REMAINDER 1) WITH (shard = 2);
CREATE TABLE PART_2 PARTITION OF PART FOR VALUES WITH (MODULUS 3, REMAINDER 2) WITH (shard = 3);

CREATE TABLE SUPPLIER ( S_SUPPKEY     INTEGER NOT NULL,
                             S_NAME        CHAR(25) NOT NULL,
                             S_ADDRESS     VARCHAR(40) NOT NULL,
                             S_NATIONKEY   INTEGER NOT NULL,
                             S_PHONE       CHAR(15) NOT NULL,
                             S_ACCTBAL     DECIMAL(15,2) NOT NULL,
                             S_COMMENT     VARCHAR(101) NOT NULL,
	PRIMARY KEY (S_SUPPKEY)) PARTITION BY HASH (S_SUPPKEY);
CREATE TABLE SUPPLIER_0 PARTITION OF SUPPLIER FOR VALUES WITH (MODULUS 3, REMAINDER 0) WITH (shard = 1);
CREATE TABLE SUPPLIER_1 PARTITION OF SUPPLIER FOR VALUES WITH (MODULUS 3, REMAINDER 1) WITH (shard = 2);
CREATE TABLE SUPPLIER_2 PARTITION OF SUPPLIER FOR VALUES WITH (MODULUS 3, REMAINDER 2) WITH (shard = 3);

CREATE TABLE PARTSUPP ( PS_PARTKEY     INTEGER NOT NULL,
                             PS_SUPPKEY     INTEGER NOT NULL,
                             PS_AVAILQTY    INTEGER NOT NULL,
                             PS_SUPPLYCOST  DECIMAL(15,2)  NOT NULL,
                             PS_COMMENT     VARCHAR(199) NOT NULL,
	PRIMARY KEY (PS_PARTKEY, PS_SUPPKEY)) PARTITION BY HASH (PS_PARTKEY);
CREATE TABLE PARTSUPP_0 PARTITION OF PARTSUPP FOR VALUES WITH (MODULUS 3, REMAINDER 0) WITH (shard = 1);
CREATE TABLE PARTSUPP_1 PARTITION OF PARTSUPP FOR VALUES WITH (MODULUS 3, REMAINDER 1) WITH (shard = 2);
CREATE TABLE PARTSUPP_2 PARTITION OF PARTSUPP FOR VALUES WITH (MODULUS 3, REMAINDER 2) WITH (shard = 3);

CREATE TABLE CUSTOMER ( C_CUSTKEY     INTEGER NOT NULL,
                             C_NAME        VARCHAR(25) NOT NULL,
                             C_ADDRESS     VARCHAR(40) NOT NULL,
                             C_NATIONKEY   INTEGER NOT NULL,
                             C_PHONE       CHAR(15) NOT NULL,
                             C_ACCTBAL     DECIMAL(15,2)   NOT NULL,
                             C_MKTSEGMENT  CHAR(10) NOT NULL,
                             C_COMMENT     VARCHAR(117) NOT NULL,
	PRIMARY KEY(C_CUSTKEY)) PARTITION BY HASH (C_CUSTKEY);
CREATE TABLE CUSTOMER_0 PARTITION OF CUSTOMER FOR VALUES WITH (MODULUS 3, REMAINDER 0) WITH (shard = 1);
CREATE TABLE CUSTOMER_1 PARTITION OF CUSTOMER FOR VALUES WITH (MODULUS 3, REMAINDER 1) WITH (shard = 2);
CREATE TABLE CUSTOMER_2 PARTITION OF CUSTOMER FOR VALUES WITH (MODULUS 3, REMAINDER 2) WITH (shard = 3);

CREATE TABLE ORDERS  ( O_ORDERKEY       INTEGER NOT NULL,
                           O_CUSTKEY        INTEGER NOT NULL,
                           O_ORDERSTATUS    CHAR(1) NOT NULL,
                           O_TOTALPRICE     DECIMAL(15,2) NOT NULL,
                           O_ORDERDATE      DATE NOT NULL,
                           O_ORDERPRIORITY  CHAR(15) NOT NULL,
                           O_CLERK          CHAR(15) NOT NULL,
                           O_SHIPPRIORITY   INTEGER NOT NULL,
                           O_COMMENT        VARCHAR(79) NOT NULL,
	PRIMARY KEY(O_ORDERKEY)) PARTITION BY HASH (O_ORDERKEY);
CREATE TABLE ORDERS_0 PARTITION OF ORDERS FOR VALUES WITH (MODULUS 3, REMAINDER 0) WITH (shard = 1);
CREATE TABLE ORDERS_1 PARTITION OF ORDERS FOR VALUES WITH (MODULUS 3, REMAINDER 1) WITH (shard = 2);
CREATE TABLE ORDERS_2 PARTITION OF ORDERS FOR VALUES WITH (MODULUS 3, REMAINDER 2) WITH (shard = 3);

CREATE TABLE LINEITEM ( L_ORDERKEY    INTEGER NOT NULL,
                             L_PARTKEY     INTEGER NOT NULL,
                             L_SUPPKEY     INTEGER NOT NULL,
                             L_LINENUMBER  INTEGER NOT NULL,
                             L_QUANTITY    DECIMAL(15,2) NOT NULL,
                             L_EXTENDEDPRICE  DECIMAL(15,2) NOT NULL,
                             L_DISCOUNT    DECIMAL(15,2) NOT NULL,
                             L_TAX         DECIMAL(15,2) NOT NULL,
                             L_RETURNFLAG  CHAR(1) NOT NULL,
                             L_LINESTATUS  CHAR(1) NOT NULL,
                             L_SHIPDATE    DATE NOT NULL,
                             L_COMMITDATE  DATE NOT NULL,
                             L_RECEIPTDATE DATE NOT NULL,
                             L_SHIPINSTRUCT CHAR(25) NOT NULL,
                             L_SHIPMODE     CHAR(10) NOT NULL,
                             L_COMMENT      VARCHAR(44) NOT NULL,
	PRIMARY KEY(L_ORDERKEY, L_LINENUMBER)) PARTITION BY HASH (L_ORDERKEY);
CREATE TABLE LINEITEM_0 PARTITION OF LINEITEM FOR VALUES WITH (MODULUS 3, REMAINDER 0) WITH (shard = 1);
CREATE TABLE LINEITEM_1 PARTITION OF LINEITEM FOR VALUES WITH (MODULUS 3, REMAINDER 1) WITH (shard = 2);
CREATE TABLE LINEITEM_2 PARTITION OF LINEITEM FOR VALUES WITH (MODULUS 3, REMAINDER 2) WITH (shard = 3);

Grennplum

create table nation  ( n_nationkey  integer not null,
                            n_name       char(25) not null,
                            n_regionkey  integer not null,
                            n_comment    varchar(152),
			    primary key (n_nationkey)) ;

create table region  ( r_regionkey  integer not null,
                            r_name       char(25) not null,
                            r_comment    varchar(152),
			    primary key (r_regionkey)) ;

create table part  ( p_partkey     integer not null,
                          p_name        varchar(55) not null,
                          p_mfgr        char(25) not null,
                          p_brand       char(10) not null,
                          p_type        varchar(25) not null,
                          p_size        integer not null,
                          p_container   char(10) not null,
                          p_retailprice decimal(15,2) not null,
                          p_comment     varchar(23) not null,
			  primary key (p_partkey));

create table supplier ( s_suppkey     integer not null,
                             s_name        char(25) not null,
                             s_address     varchar(40) not null,
                             s_nationkey   integer not null,
                             s_phone       char(15) not null,
                             s_acctbal     decimal(15,2) not null,
                             s_comment     varchar(101) not null,
			     primary key (s_suppkey));

create table partsupp ( ps_partkey     integer not null,
                             ps_suppkey     integer not null,
                             ps_availqty    integer not null,
                             ps_supplycost  decimal(15,2)  not null,
                             ps_comment     varchar(199) not null,
			     primary key (ps_partkey, ps_suppkey));

create table customer ( c_custkey     integer not null,
                             c_name        varchar(25) not null,
                             c_address     varchar(40) not null,
                             c_nationkey   integer not null,
                             c_phone       char(15) not null,
                             c_acctbal     decimal(15,2) not null,
                             c_mktsegment  char(10) not null,
                             c_comment     varchar(117) not null,
			     primary key(c_custkey));

create table orders  ( o_orderkey       integer not null,
                           o_custkey        integer not null,
                           o_orderstatus    char(1) not null,
                           o_totalprice     decimal(15,2) not null,
                           o_orderdate      date not null,
                           o_orderpriority  char(15) not null,
                           o_clerk          char(15) not null,
                           o_shippriority   integer not null,
                           o_comment        varchar(79) not null,
			   primary key(o_orderkey));

create table lineitem ( l_orderkey    integer not null,
                             l_partkey     integer not null,
                             l_suppkey     integer not null,
                             l_linenumber  integer not null,
                             l_quantity    decimal(15,2) not null,
                             l_extendedprice  decimal(15,2) not null,
                             l_discount    decimal(15,2) not null,
                             l_tax         decimal(15,2) not null,
                             l_returnflag  char(1) not null,
                             l_linestatus  char(1) not null,
                             l_shipdate    date not null,
                             l_commitdate  date not null,
                             l_receiptdate date not null,
                             l_shipinstruct char(25) not null,
                             l_shipmode     char(10) not null,
                             l_comment      varchar(44) not null,
			     primary key(l_orderkey, l_linenumber));

收集统计信息

采用如下语句收集统计信息：

Klustron和Greenplum都执行相同的语句：

analyze nation;
analyze region;
analyze part;
analyze supplier;
analyze partsupp;
analyze customer;
analyze orders;
analyze lineitem;
analyze lineitem(l_shipmode,l_receiptdate,l_returnflag,l_linestatus,l_orderkey,l_suppkey,l_discount,l_quantity,l_partkey);
analyze supplier(s_suppkey,s_nationkey);
analyze part(p_size,p_type,p_partkey);
analyze partsupp(ps_suppkey,ps_supplycost);
analyze nation(n_regionkey,n_nationkey,n_name);
analyze region(r_name,r_regionkey);
analyze customer(c_mktsegment,c_custkey,c_nationkey,c_name);
analyze orders(o_custkey,o_orderkey,o_orderdate,o_orderpriority,o_totalprice);

查询语句

#Q1:
select
	l_returnflag,
	l_linestatus,
	sum(l_quantity) as sum_qty,
	sum(l_extendedprice) as sum_base_price,
	sum(l_extendedprice * (1 - l_discount)) as sum_disc_price,
	sum(l_extendedprice * (1 - l_discount) * (1 + l_tax)) as sum_charge,
	avg(l_quantity) as avg_qty,
	avg(l_extendedprice) as avg_price,
	avg(l_discount) as avg_disc,
	count(*) as count_order
from
	lineitem
where
	l_shipdate <= date '1998-12-01' - interval '91' day
group by
	l_returnflag,
	l_linestatus
order by
	l_returnflag,
	l_linestatus
LIMIT 1;



#Q2:
select
	s_acctbal,
	s_name,
	n_name,
	p_partkey,
	p_mfgr,
	s_address,
	s_phone,
	s_comment
from
	part,
	supplier,
	partsupp,
	nation,
	region
where
	p_partkey = ps_partkey
	and s_suppkey = ps_suppkey
	and p_size = 6
	and p_type like '%BRASS'
	and s_nationkey = n_nationkey
	and n_regionkey = r_regionkey
	and r_name = 'ASIA'
	and ps_supplycost = (
		select
			min(ps_supplycost)
		from
			partsupp,
			supplier,
			nation,
			region
		where
			p_partkey = ps_partkey
			and s_suppkey = ps_suppkey
			and s_nationkey = n_nationkey
			and n_regionkey = r_regionkey
			and r_name = 'ASIA'
	)
order by
	s_acctbal desc,
	n_name,
	s_name,
	p_partkey
LIMIT 100;



#Q3:
select
	l_orderkey,
	sum(l_extendedprice * (1 - l_discount)) as revenue,
	o_orderdate,
	o_shippriority
from
	customer,
	orders,
	lineitem
where
	c_mktsegment = 'BUILDING'
	and c_custkey = o_custkey
	and l_orderkey = o_orderkey
	and o_orderdate < date '1995-03-17'
	and l_shipdate > date '1995-03-17'
group by
	l_orderkey,
	o_orderdate,
	o_shippriority
order by
	revenue desc,
	o_orderdate
LIMIT 10;


#Q4:
select
	o_orderpriority,
	count(*) as order_count
from
	orders
where
	o_orderdate >= date '1995-07-01'
	and o_orderdate < date '1995-07-01' + interval '3' month
	and exists (
		select
			*
		from
			lineitem
		where
			l_orderkey = o_orderkey
			and l_commitdate < l_receiptdate
	)
group by
	o_orderpriority
order by
	o_orderpriority
LIMIT 1;



#Q5:
select
	n_name,
	sum(l_extendedprice * (1 - l_discount)) as revenue
from
	customer,
	orders,
	lineitem,
	supplier,
	nation,
	region
where
	c_custkey = o_custkey
	and l_orderkey = o_orderkey
	and l_suppkey = s_suppkey
	and c_nationkey = s_nationkey
	and s_nationkey = n_nationkey
	and n_regionkey = r_regionkey
	and r_name = 'AFRICA'
	and o_orderdate >= date '1997-01-01'
	and o_orderdate < date '1997-01-01' + interval '1' year
group by
	n_name
order by
	revenue desc
LIMIT 1;



#Q6:
select
	sum(l_extendedprice * l_discount) as revenue
from
	lineitem
where
	l_shipdate >= date '1997-01-01'
	and l_shipdate < date '1997-01-01' + interval '1' year
	and l_discount between 0.05 - 0.01 and 0.05 + 0.01
	and l_quantity < 25
LIMIT 1;



#Q7:
select
	supp_nation,
	cust_nation,
	l_year,
	sum(volume) as revenue
from
	(
		select
			n1.n_name as supp_nation,
			n2.n_name as cust_nation,
			extract(year from l_shipdate) as l_year,
			l_extendedprice * (1 - l_discount) as volume
		from
			supplier,
			lineitem,
			orders,
			customer,
			nation n1,
			nation n2
		where
			s_suppkey = l_suppkey
			and o_orderkey = l_orderkey
			and c_custkey = o_custkey
			and s_nationkey = n1.n_nationkey
			and c_nationkey = n2.n_nationkey
			and (
				(n1.n_name = 'IRAN' and n2.n_name = 'PERU')
				or (n1.n_name = 'PERU' and n2.n_name = 'IRAN')
			)
			and l_shipdate between date '1995-01-01' and date '1996-12-31'
	) as shipping
group by
	supp_nation,
	cust_nation,
	l_year
order by
	supp_nation,
	cust_nation,
	l_year
LIMIT 1;


#Q8:
select
	o_year,
	sum(case
		when nation = 'PERU' then volume
		else 0
	end) / sum(volume) as mkt_share
from
	(
		select
			extract(year from o_orderdate) as o_year,
			l_extendedprice * (1 - l_discount) as volume,
			n2.n_name as nation
		from
			part,
			supplier,
			lineitem,
			orders,
			customer,
			nation n1,
			nation n2,
			region
		where
			p_partkey = l_partkey
			and s_suppkey = l_suppkey
			and l_orderkey = o_orderkey
			and o_custkey = c_custkey
			and c_nationkey = n1.n_nationkey
			and n1.n_regionkey = r_regionkey
			and r_name = 'AMERICA'
			and s_nationkey = n2.n_nationkey
			and o_orderdate between date '1995-01-01' and date '1996-12-31'
			and p_type = 'ECONOMY ANODIZED COPPER'
	) as all_nations
group by
	o_year
order by
	o_year
LIMIT 1;


#Q9:
select
	nation,
	o_year,
	sum(amount) as sum_profit
from
	(
		select
			n_name as nation,
			extract(year from o_orderdate) as o_year,
			l_extendedprice * (1 - l_discount) - ps_supplycost * l_quantity as amount
		from
			part,
			supplier,
			lineitem,
			partsupp,
			orders,
			nation
		where
			s_suppkey = l_suppkey
			and ps_suppkey = l_suppkey
			and ps_partkey = l_partkey
			and p_partkey = l_partkey
			and o_orderkey = l_orderkey
			and s_nationkey = n_nationkey
			and p_name like '%pink%'
	) as profit
group by
	nation,
	o_year
order by
	nation,
	o_year desc
LIMIT 1;



#Q10:
select
	c_custkey,
	c_name,
	sum(l_extendedprice * (1 - l_discount)) as revenue,
	c_acctbal,
	n_name,
	c_address,
	c_phone,
	c_comment
from
	customer,
	orders,
	lineitem,
	nation
where
	c_custkey = o_custkey
	and l_orderkey = o_orderkey
	and o_orderdate >= date '1993-05-01'
	and o_orderdate < date '1993-05-01' + interval '3' month
	and l_returnflag = 'R'
	and c_nationkey = n_nationkey
group by
	c_custkey,
	c_name,
	c_acctbal,
	c_phone,
	n_name,
	c_address,
	c_comment
order by
	revenue desc
LIMIT 20;


#Q11:
select
	ps_partkey,
	sum(ps_supplycost * ps_availqty) as value
from
	partsupp,
	supplier,
	nation
where
	ps_suppkey = s_suppkey
	and s_nationkey = n_nationkey
	and n_name = 'MOZAMBIQUE'
group by
	ps_partkey having
		sum(ps_supplycost * ps_availqty) > (
			select
				sum(ps_supplycost * ps_availqty) * 0.0001000000
			from
				partsupp,
				supplier,
				nation
			where
				ps_suppkey = s_suppkey
				and s_nationkey = n_nationkey
				and n_name = 'MOZAMBIQUE'
		)
order by
	value desc
LIMIT 1;


#Q12:
select
	l_shipmode,
	sum(case
		when o_orderpriority = '1-URGENT'
			or o_orderpriority = '2-HIGH'
			then 1
		else 0
	end) as high_line_count,
	sum(case
		when o_orderpriority <> '1-URGENT'
			and o_orderpriority <> '2-HIGH'
			then 1
		else 0
	end) as low_line_count
from
	orders,
	lineitem
where
	o_orderkey = l_orderkey
	and (l_shipmode = 'MAIL' or l_shipmode = 'FOB')
	and l_commitdate < l_receiptdate
	and l_shipdate < l_commitdate
	and l_receiptdate >= date '1994-01-01'
	and l_receiptdate < date '1994-01-01' + interval '1' year
group by
	l_shipmode
order by
	l_shipmode
LIMIT 1;



#Q13:
select
	c_count,
	count(*) as custdist
from
	(
		select
			c_custkey,
			count(o_orderkey)
		from
			customer left outer join orders on
				c_custkey = o_custkey
				and o_comment not like '%special%requests%'
		group by
			c_custkey
	) as c_orders (c_custkey, c_count)
group by
	c_count
order by
	custdist desc,
	c_count desc
LIMIT 1;


#Q14:
select
	100.00 * sum(case
		when p_type like 'PROMO%'
			then l_extendedprice * (1 - l_discount)
		else 0
	end) / sum(l_extendedprice * (1 - l_discount)) as promo_revenue
from
	lineitem,
	part
where
	l_partkey = p_partkey
	and l_shipdate >= date '1994-10-01'
	and l_shipdate < date '1994-10-01' + interval '1' month
LIMIT 1;


#Q15:
create view revenue0 (supplier_no, total_revenue) as
	select
		l_suppkey,
		sum(l_extendedprice * (1 - l_discount))
	from
		lineitem
	where
		l_shipdate >= date '1994-04-01'
		and l_shipdate < date '1994-04-01' + interval '3' month
	group by
		l_suppkey;


select
	s_suppkey,
	s_name,
	s_address,
	s_phone,
	total_revenue
from
	supplier,
	revenue0
where
	s_suppkey = supplier_no
	and total_revenue = (
		select
			max(total_revenue)
		from
			revenue0
	)
order by
	s_suppkey
LIMIT 1;

drop view revenue0;


#Q16:
select
	p_brand,
	p_type,
	p_size,
	count(distinct ps_suppkey) as supplier_cnt
from
	partsupp,
	part
where
	p_partkey = ps_partkey
	and p_brand <> 'Brand#11'
	and p_type not like 'STANDARD BRUSHED%'
	and p_size in (9, 21, 24, 30, 36, 50, 27, 39)
	and ps_suppkey not in (
		select
			s_suppkey
		from
			supplier
		where
			s_comment like '%Customer%Complaints%'
	)
group by
	p_brand,
	p_type,
	p_size
order by
	supplier_cnt desc,
	p_brand,
	p_type,
	p_size
LIMIT 1;


#Q17:
select
	sum(l_extendedprice) / 7.0 as avg_yearly
from
	lineitem,
	part,
	(SELECT l_partkey AS agg_partkey, 0.2 * avg(l_quantity) AS avg_quantity FROM lineitem GROUP BY l_partkey) part_agg
where
	p_partkey = l_partkey
	and agg_partkey = l_partkey
	and p_brand = 'Brand#11'
	and p_container = 'SM CAN'
	and l_quantity < avg_quantity
LIMIT 1;



#Q18:
select
	c_name,
	c_custkey,
	o_orderkey,
	o_orderdate,
	o_totalprice,
	sum(l_quantity)
from
	customer,
	orders,
	lineitem
where
	o_orderkey in (
		select
			l_orderkey
		from
			lineitem
		group by
			l_orderkey having
				sum(l_quantity) > 312
	)
	and c_custkey = o_custkey
	and o_orderkey = l_orderkey
group by
	c_name,
	c_custkey,
	o_orderkey,
	o_orderdate,
	o_totalprice
order by
	o_totalprice desc,
	o_orderdate
LIMIT 100;


#Q19:
select
	sum(l_extendedprice* (1 - l_discount)) as revenue
from
	lineitem,
	part
where
	(
		p_partkey = l_partkey
		and p_brand = 'Brand#12'
		and p_container in ('SM CASE', 'SM BOX', 'SM PACK', 'SM PKG')
		and l_quantity >= 5 and l_quantity <= 5 + 10
		and p_size between 1 and 5
		and l_shipmode in ('AIR', 'AIR REG')
		and l_shipinstruct = 'DELIVER IN PERSON'
	)
	or
	(
		p_partkey = l_partkey
		and p_brand = 'Brand#33'
		and p_container in ('MED BAG', 'MED BOX', 'MED PKG', 'MED PACK')
		and l_quantity >= 18 and l_quantity <= 18 + 10
		and p_size between 1 and 10
		and l_shipmode in ('AIR', 'AIR REG')
		and l_shipinstruct = 'DELIVER IN PERSON'
	)
	or
	(
		p_partkey = l_partkey
		and p_brand = 'Brand#45'
		and p_container in ('LG CASE', 'LG BOX', 'LG PACK', 'LG PKG')
		and l_quantity >= 20 and l_quantity <= 20 + 10
		and p_size between 1 and 15
		and l_shipmode in ('AIR', 'AIR REG')
		and l_shipinstruct = 'DELIVER IN PERSON'
	)
LIMIT 1;


#Q20:
select
	s_name,
	s_address
from
	supplier,
	nation
where
	s_suppkey in (
		select
			ps_suppkey
		from
			partsupp,
			(
				select
					l_partkey agg_partkey,
					l_suppkey agg_suppkey,
					0.5 * sum(l_quantity) AS agg_quantity
				from
					lineitem
				where
					l_shipdate >= date '1995-01-01'
					and l_shipdate < date '1995-01-01' + interval '1' year
				group by
					l_partkey,
					l_suppkey
			) agg_lineitem
		where
			agg_partkey = ps_partkey
			and agg_suppkey = ps_suppkey
			and ps_partkey in (
				select
					p_partkey
				from
					part
				where
					p_name like 'hot%'
			)
			and ps_availqty > agg_quantity
	)
	and s_nationkey = n_nationkey
	and n_name = 'KENYA'
order by
	s_name
LIMIT 1;



#Q21:
select
	s_name,
	count(*) as numwait
from
	supplier,
	lineitem l1,
	orders,
	nation
where
	s_suppkey = l1.l_suppkey
	and o_orderkey = l1.l_orderkey
	and o_orderstatus = 'F'
	and l1.l_receiptdate > l1.l_commitdate
	and exists (
		select
			*
		from
			lineitem l2
		where
			l2.l_orderkey = l1.l_orderkey
			and l2.l_suppkey <> l1.l_suppkey
	)
	and not exists (
		select
			*
		from
			lineitem l3
		where
			l3.l_orderkey = l1.l_orderkey
			and l3.l_suppkey <> l1.l_suppkey
			and l3.l_receiptdate > l3.l_commitdate
	)
	and s_nationkey = n_nationkey
	and n_name = 'IRAQ'
group by
	s_name
order by
	numwait desc,
	s_name
LIMIT 100;


#Q22:
select
	cntrycode,
	count(*) as numcust,
	sum(c_acctbal) as totacctbal
from
	(
		select
			substring(c_phone from 1 for 2) as cntrycode,
			c_acctbal
		from
			customer
		where
			substring(c_phone from 1 for 2) in
				('24', '27', '34', '23', '29', '15', '13')
			and c_acctbal > (
				select
					avg(c_acctbal)
				from
					customer
				where
					c_acctbal > 0.00
					and substring(c_phone from 1 for 2) in
						('24', '27', '34', '23', '29', '15', '13')
			)
			and not exists (
				select
					*
				from
					orders
				where
					o_custkey = c_custkey
			)
	) as custsale
group by
	cntrycode
order by
	cntrycode
LIMIT 1;

TPCH-Klustron vs Greenplum

# TPCH-Klustron vs Greenplum

# 测试概况

# 测试环境

# 服务器规格配置

# 软件版本

# 集群环境

# Klustron

# Greenplum

# 配置参数

# Klustron

# Greenplum

# 测试结果

# TPC-H-100G

# TPC-H-200G

# TPC-H-500G

# 建表语句

# Klustron

# Klustron-1.4 建表语法

# Klustron-1.3以及更老版本的建表语法

# Grennplum

# 收集统计信息

# 查询语句

TPCH-Klustron vs Greenplum

测试概况

测试环境

服务器规格配置

软件版本

集群环境

Klustron

Greenplum

配置参数

Klustron

Greenplum

测试结果

TPC-H-100G

TPC-H-200G

TPC-H-500G

建表语句

Klustron

Klustron-1.4 建表语法

Klustron-1.3以及更老版本的建表语法

Grennplum

收集统计信息

查询语句
