Klustron与Greenplum进行性能对比测试TPCC

本文目标：

通过使用业界流行的TPCC性能测试工具(BenchmarkSQL)，针对Klustron-1.2 和Greenplum-6.24.5 分别进行测试，获得性能对比结论。

测试环境一： (Greenplum)

Greenplum版本：6.24.5-rhel8-x86_64

节点类型	IP	端口
Master	192.168.0.20	5432
Seg1节点	192.168.0.21	6000
Seg2节点	192.168.0.22	6000

运行环境： CentOS 8.5 Linux 64位，CPU：AMD Ryzen 9 7950X 16-Core Processor, MEM: 128G, 存储：M.2 NVME SSD PCIE 4 固态 2T

测试环境二 : (Klustron)

节点类型	IP	端口
计算节点	192.168.0.20	47001
Shard1主节点	192.168.0.21	57003
Shard2主节点	192.168.0.22	57005
XPanel	192.168.0.20	40580

运行环境：CentOS 8.5 Linux 64位，CPU：AMD Ryzen 9 7950X 16-Core Processor, MEM: 128G, 存储：M.2 NVME SSD PCIE 4 固态 2T

​

测试环境三：（ BenchmarkSQL ）

BenchmarkSQL: v5.0

部署模式：单节点

重点参数：

warehouses=50
	terminals=100
	runMins=30
	newOrderWeight=45
	paymentWeight=43
	orderStatusWeight=4
	deliveryWeight=4
	stockLevelWeight=4

运行环境：CentOS 8.5 Linux 64位，CPU：AMD Ryzen 9 7950X 16-Core Processor, MEM: 128G, 存储：M.2 NVME SSD PCIE 4 固态 2T

IP: 192.168.0.19

备注：BenchmarkSQL所在的Linux 环境，需要安装好R，否则，测试结果报告中将不会显示图片分析结果

01 Greenplum性能测试

1.1. 测试准备

1.1.1. Greenplum安装过程

《略》

1.1.2. 参数调整（在Master节点执行）

gpconfig -c shared_buffers -v 32GB
gpconfig -c statement_timeout -v 6000000
gpconfig -c lock_timeout -v 1200000
gpconfig -c log_min_duration_statement -v 1200000
gpconfig -c effective_cache_size  -v  64GB
gpconfig -c work_mem   -v  64MB
gpconfig -c wal_buffers -v 64MB
gpconfig -c autovacuum -v false
gpconfig -c optimizer -v off
gpstop -M fast
gpstart

1.1.3. 调整BenchmarkSQL的配置，以适应Greenplum数据库的架构

修改BenchmarkSQL 的建表脚本（对表进行分区）

cd benchmarksql5.0/run/sql.common

cat << EOF > tableCreates.sql
create table bmsql_config (
  cfg_name    varchar(30) primary key,
  cfg_value   varchar(50)
);
create table bmsql_warehouse (
  w_id        integer   not null,
  w_ytd       decimal(12,2),
  w_tax       decimal(4,4),
  w_name      varchar(10),
  w_street_1  varchar(20),
  w_street_2  varchar(20),
  w_city      varchar(20),
  w_state     char(2),
  w_zip       char(9)
) DISTRIBUTED BY (w_id);

create table bmsql_district (
  d_w_id       integer       not null,
  d_id         integer       not null,
  d_ytd        decimal(12,2),
  d_tax        decimal(4,4),
  d_next_o_id  integer,
  d_name       varchar(10),
  d_street_1   varchar(20),
  d_street_2   varchar(20),
  d_city       varchar(20),
  d_state      char(2),
  d_zip        char(9)
) DISTRIBUTED BY (d_w_id);

create table bmsql_customer (
  c_w_id         integer        not null,
  c_d_id         integer        not null,
  c_id           integer        not null,
  c_discount     decimal(4,4),
  c_credit       char(2),
  c_last         varchar(16),
  c_first        varchar(16),
  c_credit_lim   decimal(12,2),
  c_balance      decimal(12,2),
  c_ytd_payment  decimal(12,2),
  c_payment_cnt  integer,
  c_delivery_cnt integer,
  c_street_1     varchar(20),
  c_street_2     varchar(20),
  c_city         varchar(20),
  c_state        char(2),
  c_zip          char(9),
  c_phone        char(16),
  c_since        timestamp,
  c_middle       char(2),
  c_data         varchar(500)
) DISTRIBUTED BY (c_w_id);

create sequence bmsql_hist_id_seq;

create table bmsql_history (
  hist_id  integer,
  h_c_id   integer,
  h_c_d_id integer,
  h_c_w_id integer,
  h_d_id   integer,
  h_w_id   integer,
  h_date   timestamp,
  h_amount decimal(6,2),
  h_data   varchar(24)
) DISTRIBUTED BY (h_c_w_id);

create table bmsql_new_order (
  no_w_id  integer   not null,
  no_d_id  integer   not null,
  no_o_id  integer   not null
) DISTRIBUTED BY (no_w_id);

create table bmsql_oorder (
  o_w_id       integer      not null,
  o_d_id       integer      not null,
  o_id         integer      not null,
  o_c_id       integer,
  o_carrier_id integer,
  o_ol_cnt     integer,
  o_all_local  integer,
  o_entry_d    timestamp
) DISTRIBUTED BY (o_w_id);

create table bmsql_order_line (
  ol_w_id         integer   not null,
  ol_d_id         integer   not null,
  ol_o_id         integer   not null,
  ol_number       integer   not null,
  ol_i_id         integer   not null,
  ol_delivery_d   timestamp,
  ol_amount       decimal(6,2),
  ol_supply_w_id  integer,
  ol_quantity     integer,
  ol_dist_info    char(24)
) DISTRIBUTED BY (ol_w_id);

create table bmsql_item (
  i_id     integer      not null,
  i_name   varchar(24),
  i_price  decimal(5,2),
  i_data   varchar(50),
  i_im_id  integer
);

create table bmsql_stock (
  s_w_id       integer       not null,
  s_i_id       integer       not null,
  s_quantity   integer,
  s_ytd        integer,
  s_order_cnt  integer,
  s_remote_cnt integer,
  s_data       varchar(50),
  s_dist_01    char(24),
  s_dist_02    char(24),
  s_dist_03    char(24),
  s_dist_04    char(24),
  s_dist_05    char(24),
  s_dist_06    char(24),
  s_dist_07    char(24),
  s_dist_08    char(24),
  s_dist_09    char(24),
  s_dist_10    char(24)
) DISTRIBUTED BY (s_w_id);

alter table bmsql_warehouse add constraint warehouse_pkey primary key (w_id);
alter table bmsql_district add constraint district_pkey   primary key (d_w_id, d_id);
alter table bmsql_customer add constraint customer_pkey  primary key (c_w_id, c_d_id, c_id);
create index bmsql_customer_idx1  on  bmsql_customer (c_w_id, c_d_id, c_last, c_first);
alter table bmsql_oorder add constraint oorder_pkey  primary key (o_w_id, o_d_id, o_id);
create unique index bmsql_oorder_idx1  on  bmsql_oorder (o_w_id, o_d_id, o_carrier_id, o_id);
alter table bmsql_new_order add constraint new_order_pkey  primary key (no_w_id, no_d_id, no_o_id);
alter table bmsql_order_line add constraint order_line_pkey  primary key (ol_w_id, ol_d_id, ol_o_id, ol_number);
alter table bmsql_stock add constraint stock_pkey  primary key (s_w_id, s_i_id);
alter table bmsql_item add constraint item_pkey  primary key (i_id);
EOF

mv indexCreates.sql indexCreates.sql_old
mv foreignKeys.sql foreignKeys.sql.bak

修改：/home/gpadmin/benchmarksql-5.0/run/sql.postgres/extraHistID.sql ，将
alter table bmsql_history add primary key (hist_id)；
修改为：
alter table bmsql_history add primary key (hist_id,h_c_w_id);

mv /home/kunlun/benchmarksql-5.0/run/sql.postgres/buildFinish.sql /home/kunlun/benchmarksql-5.0/run/sql.postgres/buildFinish.sql.bak

1.1.4. 创建测试用户及数据库

psql -h 192.168.0.20 -p5432 -d gpdw   #Greenplum安装完成时创建了gpdw数据库
create user bench with password ‘bench’;
create database bench with owner bench ;
alter user bench with superuser;

1.1.5. 修改benchmarksql5.0/run/props.pg的参数

db=bench
driver=org.postgresql.Driver
conn=jdbc:postgresql://192.168.0.20:5432/bench
user=bench
password=bench

warehouses=50
loadWorkers=50

terminals=100
//To run specified transactions per terminal- runMins must equal zero
runTxnsPerTerminal=0
//To run for specified minutes- runTxnsPerTerminal must equal zero
runMins=30
//Number of total transactions per minute
limitTxnsPerMin=0

//Set to true to run in 4.x compatible mode. Set to false to use the
//entire configured database evenly.
terminalWarehouseFixed=false

//The following five values must add up to 100
//The default percentages of 45, 43, 4, 4 & 4 match the TPC-C spec
newOrderWeight=45
paymentWeight=43
orderStatusWeight=4
deliveryWeight=4
stockLevelWeight=4

// Directory name to create for collecting detailed result data.
// Comment this out to suppress.
resultDirectory=my_result_%tY-%tm-%td_%tH%tM%tS
osCollectorScript=./misc/os_collector_linux.py
osCollectorInterval=1
osCollectorSSHAddr=gpadmin@192.168.0.21
osCollectorDevices=net_enp4s0 blk_ nvme1n1

注：对Greenplum所运行的集群机器的存储节点之一进行资源监控配置，在BenchmarkSQL配置文件(props.pg)中设置资源监控，搜集压测中的CPU，存储IO，网络IO相关的负载参数, 关键参数：osCollectorSSHAddr=gpadmin@192.168.0.21 #需要配置ssh免密访问

osCollectorDevices=net_enp4s0 blk_ nvme1n1 #需要依目标机的网卡接口名及存储设备名调整名称。

1.1.6. 执行测试数据生成

cd benchmarksql5.0/run/
./runDatabaseBuild.sh props.pg

1.1.7. 对测试数据表及列做一次分析，收集统计信息

将 tableCreates.sql拷贝至Master节点，并在当前目录下编辑一个名为ana.sh的脚本，如下：

for i in `cat ./tableCreates.sql | grep 'create table' | grep -v partition | awk '{print $3}'`
do
        echo "select * from $i limit 1;" > a.sql
        clomun=`psql -h 192.168.0.20 -p 5432 -U bench bench  -f a.sql | sed -n 1p | sed 's/|/,/g'`
        analyze="analyze $i($clomun)"
        echo $analyze
        echo $analyze > tmp.sql
        psql -h 192.168.0.20 -p 5432 -U bench bench  -f tmp.sql
done

运行该脚本完成对所有测试表的统计分析。

1.2. 进行测试

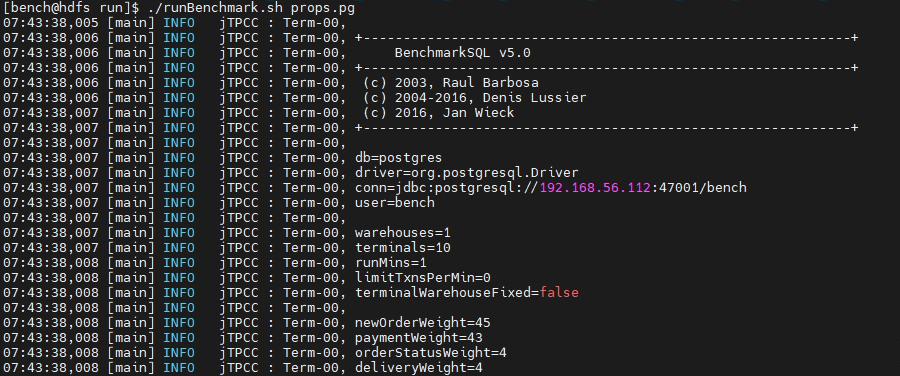

执行 runBenchMark.sh props.pg, 运行测试，压测完成后，在当前目录会生成类似my_result_2023-07-25_112947 的目录。测试运行中，Greenplum在此测试场景下，除了输出正常的log信息外，有死锁提示信息持续输出，截图如下所示：

1.3. 测试报告生成及结果阅读

执行generateReport.sh < my_result目录>将生成html分析报告，以当前配置的压测用。

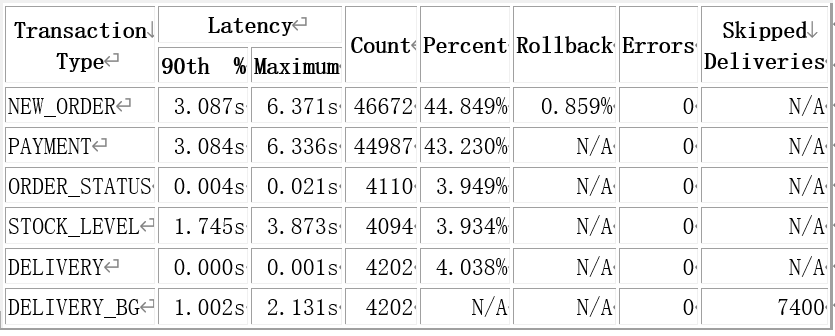

（warehouses=50,terminals=100,runMins=30**）**在报告文件中获得的关键输出信息如下：

Overall tpmC:	1555.73
Overall tpmTotal:	3468.83

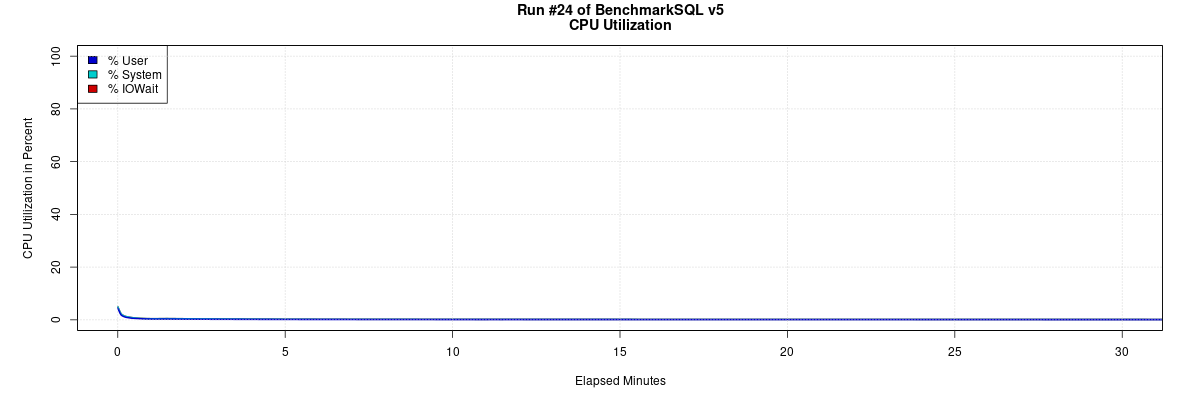

Greenplum集群存储节点1所在机器的负载监测情况如下：

02 Klustron性能测试

2.1. 测试准备

2.1.1. 安装Klustron

<略>

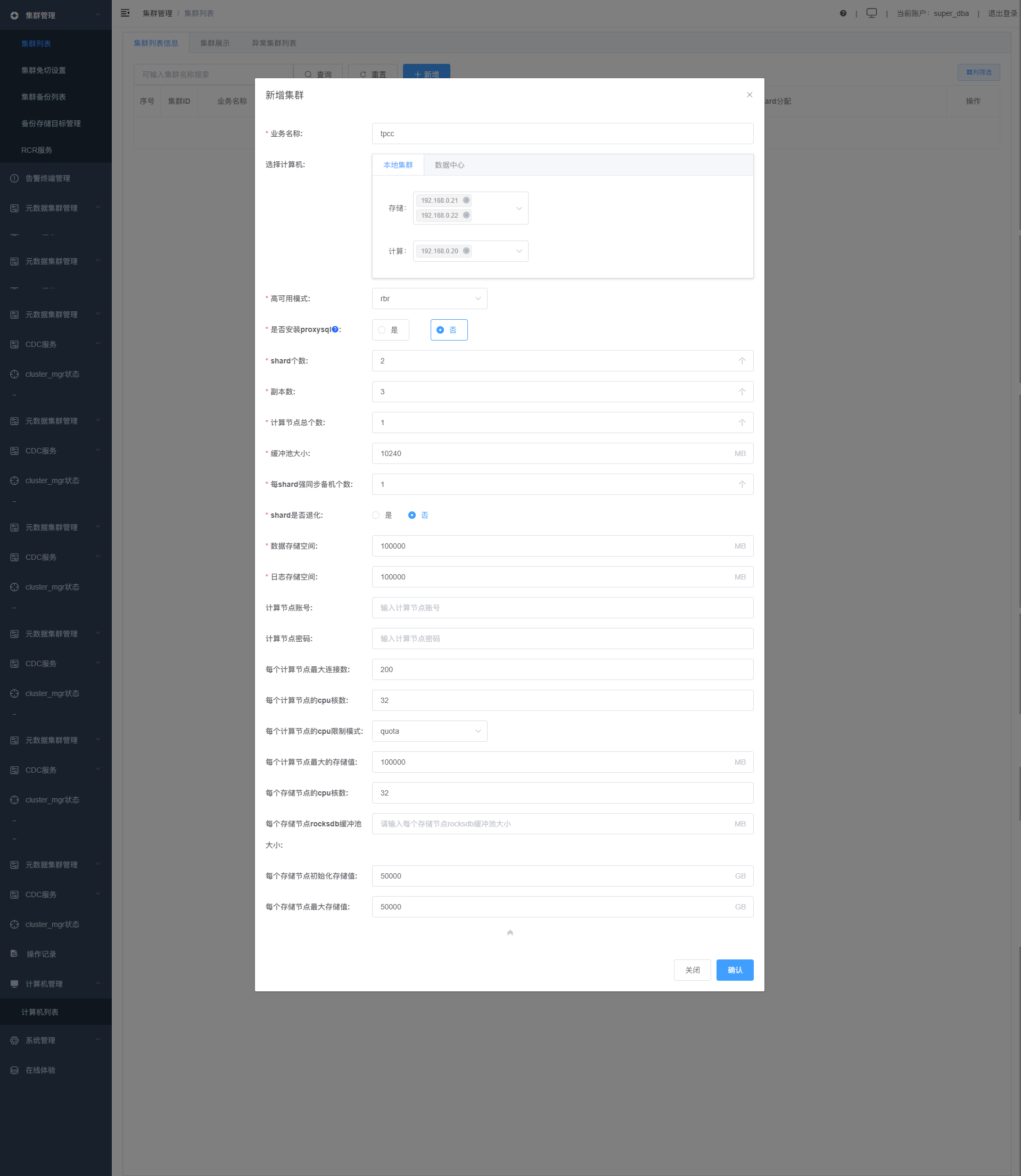

附用于测试创建的集群参数设定

2.1.2. 修改计算节点及存储节点的参数

计算节点(PG)重点参数：

shared_buffers = 34359738368   (%25 RAM)
statement_timeout=6000000
mysql_read_timeout=1200
mysql_write_timeout=1200
lock_timeout=1200000
log_min_duration_statement=1200000
effective_cache_size = 68719476736   (%50 RAM)
work_mem  = 8MB
wal_buffers = ‘64MB’
autovacuum=false

psql -h 192.168.0.20 -p 47001 -U abc postgres
alter system set shared_buffers='32GB';
alter system set statement_timeout=6000000;
alter system set mysql_read_timeout=1200;
alter system set mysql_write_timeout=1200;
alter system set lock_timeout=1200000;
alter system set log_min_duration_statement=1200000;
alter system set effective_cache_size = '64GB';
alter system set work_mem  = '8MB';
alter system set wal_buffers='64MB';
alter system set autovacuum=false;

alter system set log_min_messages='DEBUG1' ;  #需要debug sql时开启
alter system set enable_sql_log=on;  #需要debug sql 时开启


pg_ctl restart -D /nvme2/kunlun/server_datadir/47001

存储节点(MYSQL)重点参数：

innodb_buffer_pool_size=32*1024*1024*1024
lock_wait_timeout=1200
innodb_lock_wait_timeout=1200
fullsync_timeout=1200000
enable_fullsync=false
innodb_flush_log_at_trx_commit=2
sync_binlog=0
max_binlog_size=1*1024*1024*1024

mysql -h 192.168.0.21 -P 57003 -upgx -ppgx_pwd
mysql -h 192.168.0.22 -P 57005 -upgx -ppgx_pwd
set global innodb_buffer_pool_size=32*1024*1024*1024;
set global lock_wait_timeout=1200;
set global innodb_lock_wait_timeout=1200;
set global fullsync_timeout=1200000;
set global enable_fullsync=false;
set global innodb_flush_log_at_trx_commit=2;
set global sync_binlog=0;
set global max_binlog_size=1*1024*1024*1024;

set global enable_fullsync=off;  #所有shard主节点关闭全同步
set enable_fullsync=off;    #所有shard主节点关闭全同步

set global general_log=on ;   #需要debug SQL时打开

免切设置为10800秒（Xpanel）

元数据集群MySQL MGR 3节点参数调整：

export LD_LIBRARY_PATH=/nvme2/kunlun/instance_binaries/storage/57001/Klustron-storage-1.2.1/lib:$LD_LIBRARY_PATH ;
/nvme2/kunlun/instance_binaries/storage/57001/Klustron-storage-1.2.1/bin/mysql --connect-expired-password -S/nvme2/kunlun/storage_logdir/57001/mysql.sock -uroot -proot
set global innodb_buffer_pool_size=1*1024*1024*1024;     (缺省128M)

2.1.3. 调整BenchmarkSQL的配置，以适应Klustron数据的架构。

修改BenchmarkSQL 的建表脚本（对表进行分区，指定分片）

cd benchmarksql5.0/run/sql.common

cat << EOF > tableCreates.sql
create table bmsql_config (
  cfg_name    varchar(30) primary key,
  cfg_value   varchar(50)
);
create table bmsql_warehouse (
  w_id        integer   not null,
  w_ytd       decimal(12,2),
  w_tax       decimal(4,4),
  w_name      varchar(10),
  w_street_1  varchar(20),
  w_street_2  varchar(20),
  w_city      varchar(20),
  w_state     char(2),
  w_zip       char(9)
) partition by hash(w_id);
create table bmsql_warehouse_0 partition of bmsql_warehouse for values with (MODULUS 6, REMAINDER 0) with (shard = 1);
create table bmsql_warehouse_1 partition of bmsql_warehouse for values with (MODULUS 6, REMAINDER 1) with (shard = 1);
create table bmsql_warehouse_2 partition of bmsql_warehouse for values with (MODULUS 6, REMAINDER 2) with (shard = 1);
create table bmsql_warehouse_3 partition of bmsql_warehouse for values with (MODULUS 6, REMAINDER 3) with (shard = 2);
create table bmsql_warehouse_4 partition of bmsql_warehouse for values with (MODULUS 6, REMAINDER 4) with (shard = 2);
create table bmsql_warehouse_5 partition of bmsql_warehouse for values with (MODULUS 6, REMAINDER 5) with (shard = 2);
create table bmsql_district (
  d_w_id       integer       not null,
  d_id         integer       not null,
  d_ytd        decimal(12,2),
  d_tax        decimal(4,4),
  d_next_o_id  integer,
  d_name       varchar(10),
  d_street_1   varchar(20),
  d_street_2   varchar(20),
  d_city       varchar(20),
  d_state      char(2),
  d_zip        char(9)
) partition by hash(d_w_id);
create table bmsql_district_0 partition of bmsql_district for values with (MODULUS 6, REMAINDER 0) with (shard = 1);
create table bmsql_district_1 partition of bmsql_district for values with (MODULUS 6, REMAINDER 1) with (shard = 1);
create table bmsql_district_2 partition of bmsql_district for values with (MODULUS 6, REMAINDER 2) with (shard = 1);
create table bmsql_district_3 partition of bmsql_district for values with (MODULUS 6, REMAINDER 3) with (shard = 2);
create table bmsql_district_4 partition of bmsql_district for values with (MODULUS 6, REMAINDER 4) with (shard = 2);
create table bmsql_district_5 partition of bmsql_district for values with (MODULUS 6, REMAINDER 5) with (shard = 2);
create table bmsql_customer (
  c_w_id         integer        not null,
  c_d_id         integer        not null,
  c_id           integer        not null,
  c_discount     decimal(4,4),
  c_credit       char(2),
  c_last         varchar(16),
  c_first        varchar(16),
  c_credit_lim   decimal(12,2),
  c_balance      decimal(12,2),
  c_ytd_payment  decimal(12,2),
  c_payment_cnt  integer,
  c_delivery_cnt integer,
  c_street_1     varchar(20),
  c_street_2     varchar(20),
  c_city         varchar(20),
  c_state        char(2),
  c_zip          char(9),
  c_phone        char(16),
  c_since        timestamp,
  c_middle       char(2),
  c_data         varchar(500)
) partition by hash(c_w_id);
create table bmsql_customer_0 partition of bmsql_customer for values with (MODULUS 6, REMAINDER 0) with (shard = 1);
create table bmsql_customer_1 partition of bmsql_customer for values with (MODULUS 6, REMAINDER 1) with (shard = 1);
create table bmsql_customer_2 partition of bmsql_customer for values with (MODULUS 6, REMAINDER 2) with (shard = 1);
create table bmsql_customer_3 partition of bmsql_customer for values with (MODULUS 6, REMAINDER 3) with (shard = 2);
create table bmsql_customer_4 partition of bmsql_customer for values with (MODULUS 6, REMAINDER 4) with (shard = 2);
create table bmsql_customer_5 partition of bmsql_customer for values with (MODULUS 6, REMAINDER 5) with (shard = 2);
create sequence bmsql_hist_id_seq;
create table bmsql_history (
  hist_id  integer,
  h_c_id   integer,
  h_c_d_id integer,
  h_c_w_id integer,
  h_d_id   integer,
  h_w_id   integer,
  h_date   timestamp,
  h_amount decimal(6,2),
  h_data   varchar(24)
) partition by hash(h_c_w_id);
create table bmsql_history_0 partition of bmsql_history for values with (MODULUS 6, REMAINDER 0) with (shard = 1);
create table bmsql_history_1 partition of bmsql_history for values with (MODULUS 6, REMAINDER 1) with (shard = 1);
create table bmsql_history_2 partition of bmsql_history for values with (MODULUS 6, REMAINDER 2) with (shard = 1);
create table bmsql_history_3 partition of bmsql_history for values with (MODULUS 6, REMAINDER 3) with (shard = 2);
create table bmsql_history_4 partition of bmsql_history for values with (MODULUS 6, REMAINDER 4) with (shard = 2);
create table bmsql_history_5 partition of bmsql_history for values with (MODULUS 6, REMAINDER 5) with (shard = 2);
create table bmsql_new_order (
  no_w_id  integer   not null,
  no_d_id  integer   not null,
  no_o_id  integer   not null
) partition by hash(no_w_id);
create table bmsql_new_order_0 partition of bmsql_new_order for values with (MODULUS 6, REMAINDER 0) with (shard = 1);
create table bmsql_new_order_1 partition of bmsql_new_order for values with (MODULUS 6, REMAINDER 1) with (shard = 1);
create table bmsql_new_order_2 partition of bmsql_new_order for values with (MODULUS 6, REMAINDER 2) with (shard = 1);
create table bmsql_new_order_3 partition of bmsql_new_order for values with (MODULUS 6, REMAINDER 3) with (shard = 2);
create table bmsql_new_order_4 partition of bmsql_new_order for values with (MODULUS 6, REMAINDER 4) with (shard = 2);
create table bmsql_new_order_5 partition of bmsql_new_order for values with (MODULUS 6, REMAINDER 5) with (shard = 2);
create table bmsql_oorder (
  o_w_id       integer      not null,
  o_d_id       integer      not null,
  o_id         integer      not null,
  o_c_id       integer,
  o_carrier_id integer,
  o_ol_cnt     integer,
  o_all_local  integer,
  o_entry_d    timestamp
) partition by hash(o_w_id);
create table bmsql_oorder_0 partition of bmsql_oorder for values with (MODULUS 6, REMAINDER 0) with (shard = 1);
create table bmsql_oorder_1 partition of bmsql_oorder for values with (MODULUS 6, REMAINDER 1) with (shard = 1);
create table bmsql_oorder_2 partition of bmsql_oorder for values with (MODULUS 6, REMAINDER 2) with (shard = 1);
create table bmsql_oorder_3 partition of bmsql_oorder for values with (MODULUS 6, REMAINDER 3) with (shard = 2);
create table bmsql_oorder_4 partition of bmsql_oorder for values with (MODULUS 6, REMAINDER 4) with (shard = 2);
create table bmsql_oorder_5 partition of bmsql_oorder for values with (MODULUS 6, REMAINDER 5) with (shard = 2);
create table bmsql_order_line (
  ol_w_id         integer   not null,
  ol_d_id         integer   not null,
  ol_o_id         integer   not null,
  ol_number       integer   not null,
  ol_i_id         integer   not null,
  ol_delivery_d   timestamp,
  ol_amount       decimal(6,2),
  ol_supply_w_id  integer,
  ol_quantity     integer,
  ol_dist_info    char(24)
) partition by hash(ol_w_id);
create table bmsql_order_line_0 partition of bmsql_order_line for values with (MODULUS 6, REMAINDER 0) with (shard = 1);
create table bmsql_order_line_1 partition of bmsql_order_line for values with (MODULUS 6, REMAINDER 1) with (shard = 1);
create table bmsql_order_line_2 partition of bmsql_order_line for values with (MODULUS 6, REMAINDER 2) with (shard = 1);
create table bmsql_order_line_3 partition of bmsql_order_line for values with (MODULUS 6, REMAINDER 3) with (shard = 2);
create table bmsql_order_line_4 partition of bmsql_order_line for values with (MODULUS 6, REMAINDER 4) with (shard = 2);
create table bmsql_order_line_5 partition of bmsql_order_line for values with (MODULUS 6, REMAINDER 5) with (shard = 2);
create table bmsql_item (
  i_id     integer      not null,
  i_name   varchar(24),
  i_price  decimal(5,2),
  i_data   varchar(50),
  i_im_id  integer
) with (shard = all);
create table bmsql_stock (
  s_w_id       integer       not null,
  s_i_id       integer       not null,
  s_quantity   integer,
  s_ytd        integer,
  s_order_cnt  integer,
  s_remote_cnt integer,
  s_data       varchar(50),
  s_dist_01    char(24),
  s_dist_02    char(24),
  s_dist_03    char(24),
  s_dist_04    char(24),
  s_dist_05    char(24),
  s_dist_06    char(24),
  s_dist_07    char(24),
  s_dist_08    char(24),
  s_dist_09    char(24),
  s_dist_10    char(24)
) partition by hash(s_w_id);
create table bmsql_stock_0 partition of bmsql_stock for values with (MODULUS 6, REMAINDER 0) with (shard = 1);
create table bmsql_stock_1 partition of bmsql_stock for values with (MODULUS 6, REMAINDER 1) with (shard = 1);
create table bmsql_stock_2 partition of bmsql_stock for values with (MODULUS 6, REMAINDER 2) with (shard = 1);
create table bmsql_stock_3 partition of bmsql_stock for values with (MODULUS 6, REMAINDER 3) with (shard = 2);
create table bmsql_stock_4 partition of bmsql_stock for values with (MODULUS 6, REMAINDER 4) with (shard = 2);
create table bmsql_stock_5 partition of bmsql_stock for values with (MODULUS 6, REMAINDER 5) with (shard = 2);
alter table bmsql_warehouse add constraint warehouse_pkey primary key (w_id);
alter table bmsql_district add constraint district_pkey   primary key (d_w_id, d_id);
alter table bmsql_customer add constraint customer_pkey  primary key (c_w_id, c_d_id, c_id);
create index bmsql_customer_idx1  on  bmsql_customer (c_w_id, c_d_id, c_last, c_first);
alter table bmsql_oorder add constraint oorder_pkey  primary key (o_w_id, o_d_id, o_id);
create unique index bmsql_oorder_idx1  on  bmsql_oorder (o_w_id, o_d_id, o_carrier_id, o_id);
alter table bmsql_new_order add constraint new_order_pkey  primary key (no_w_id, no_d_id, no_o_id);
alter table bmsql_order_line add constraint order_line_pkey  primary key (ol_w_id, ol_d_id, ol_o_id, ol_number);
alter table bmsql_stock add constraint stock_pkey  primary key (s_w_id, s_i_id);
alter table bmsql_item add constraint item_pkey  primary key (i_id);
EOF
mv indexCreates.sql indexCreates.sql_old
mv foreignKeys.sql foreignKeys.sql.bak

修改：/home/kunlun/benchmarksql-5.0/run/sql.postgres/extraHistID.sql ，将
alter table bmsql_history add primary key (hist_id)；
修改为：
alter table bmsql_history add primary key (hist_id,h_c_w_id);

mv /home/kunlun/benchmarksql-5.0/run/sql.postgres/buildFinish.sql /home/kunlun/benchmarksql-5.0/run/sql.postgres/buildFinish.sql.bak

2.1.4. 在Klustron数据中创建测试库bench和测试用户bench

psql -h 192.168.0.20 -p 47001 -U abc postgres
postgres=# create user bench with password 'bench';
postgres=# create database bench with owner bench ;

2.1.5. 修改benchmarksql5.0/run/props.pg的参数

db=postgres
driver=org.postgresql.Driver
conn=jdbc:postgresql://192.168.0.20:47001/bench
user=bench
password=bench

warehouses=50
loadWorkers=50

terminals=100
//To run specified transactions per terminal- runMins must equal zero
runTxnsPerTerminal=0
//To run for specified minutes- runTxnsPerTerminal must equal zero
runMins=30
//Number of total transactions per minute
limitTxnsPerMin=0

//Set to true to run in 4.x compatible mode. Set to false to use the
//entire configured database evenly.
terminalWarehouseFixed=false

//The following five values must add up to 100
//The default percentages of 45, 43, 4, 4 & 4 match the TPC-C spec
newOrderWeight=45
paymentWeight=43
orderStatusWeight=4
deliveryWeight=4
stockLevelWeight=4

// Directory name to create for collecting detailed result data.
// Comment this out to suppress.
resultDirectory=my_result_%tY-%tm-%td_%tH%tM%tS
osCollectorScript=./misc/os_collector_linux.py
osCollectorInterval=1
osCollectorSSHAddr=kunlun@192.168.0.21
osCollectorDevices=net_enp4s0 blk_ nvme1n1

2.1.6. 执行测试数据生成

cd benchmarksql5.0/run/

./runDatabaseBuild.sh props.pg

2.1.7. 对测试数据表及列做一次分析，收集统计信息。

将 tableCreates.sql拷贝至计算节点，并在当前目录下编辑一个名为ana.sh的脚本，如下：

for i in `cat ./tableCreates.sql | grep 'create table' | grep -v partition | awk '{print $3}'`
do
        echo "select * from $i limit 1;" > a.sql
        clomun=`psql -h 192.168.0.20 -p 47001 -U bench bench  -f a.sql | sed -n 1p | sed 's/|/,/g'`
        analyze="analyze $i($clomun)"
        echo $analyze
        echo $analyze > tmp.sql
        psql -h 192.168.0.20 -p 47001 -U bench bench  -f tmp.sql
done

运行该脚本完成对所有测试表的统计分析。

2.1.8. 对所有存储节点做一次事务清理，编辑一个名为xa.sh 的脚本 ，内容如下：

echo 'xa recover'> tmp.sql
echo $1
for i in `mysql -h 192.168.0.$1 -ppgx_pwd -upgx -P$2 < tmp.sql | awk '{print $4}' | sed '1d'`
do
        printf "xa rollback \'$i\'" > tmp.sql
        echo "========$i========"
        mysql -h 192.168.0.$1 -ppgx_pwd -upgx -P$2 < tmp.sql
done

将其拷贝到存储节点shard1(192.168.0,21), shard2(192.168.0.22) ，并输入对应的参数，完成脚本执行。

例： sh xa.sh 21 57003

2.2. 进行测试

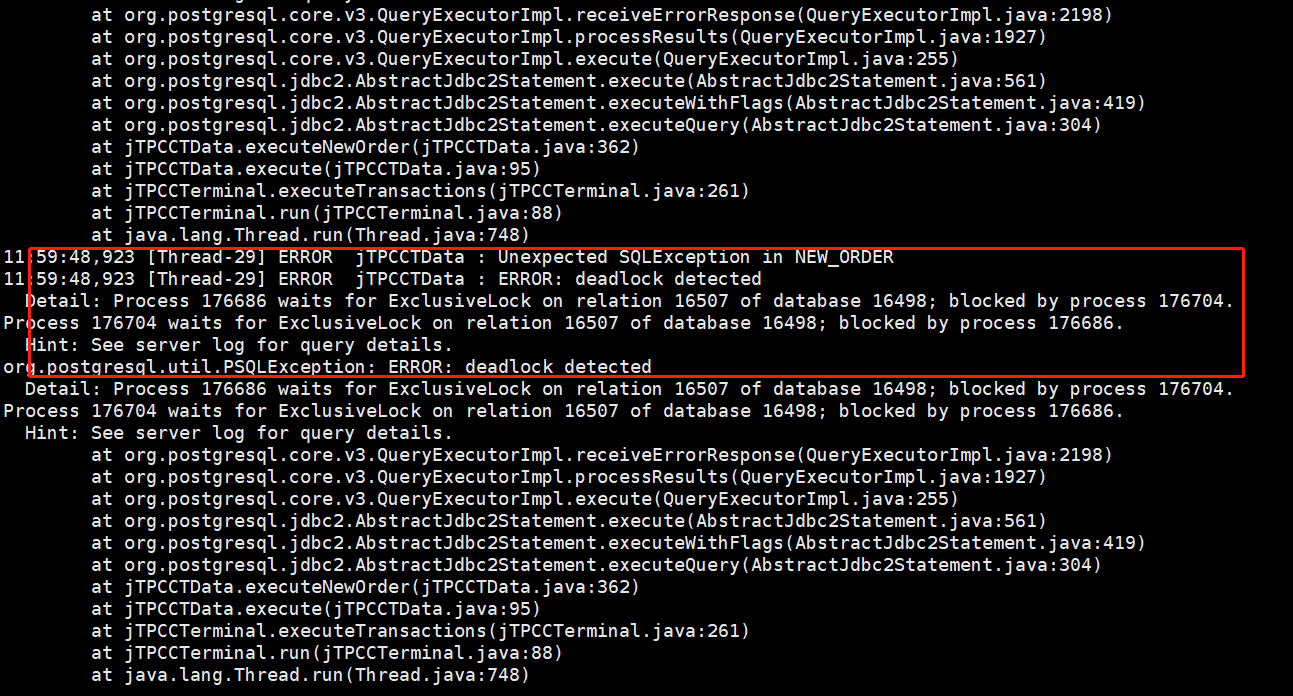

执行 runBenchMark.sh props.pg, 将有类似如下信息输出：

压测完成后，在当前目录会生成类似：my_result_2023-04-16_074338 的目录

2.3. 测试报告生成及结果阅读

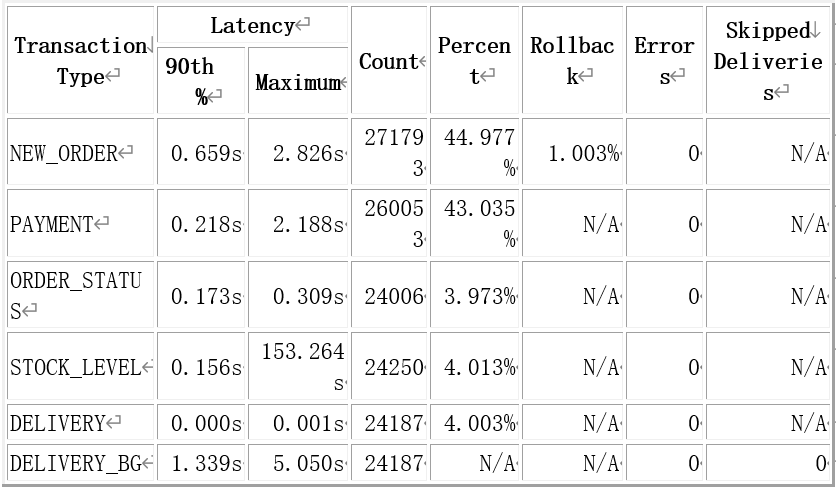

执行generateReport.sh < my_result目录>将生成html分析报告，以当前配置的压测用例。（warehouses=50,terminals=100,runMins=30**）**在报告文件中获得的关键输出信息如下：

Overall tpmC:	9059.77
Overall tpmTotal:	20142.97

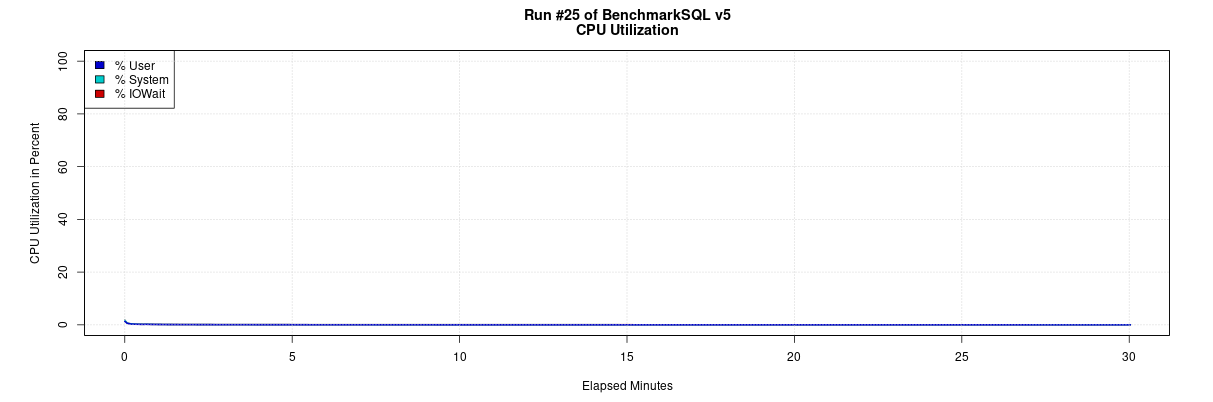

Klustron存储节点(192.168.0.21)所在机器的负载监测情况如下：

03 TPCC性能测试对比结果汇总

50warehouses 对比

结果分析

从上述性能数据可以看出KunlunBase 比Greenplum在TPCC方面有巨大的性能优势，这种优势在实际使用场景中主要体现在持续流式数据更新的速度，KunlunBase比Greenplum要更快，而这具有重大的现实意义和价值。

一个典型的场景是数据更新从多个业务系统的数据库持续流入，并且从诸如APP和网页埋点数据流入，此时流入速度如果跟不上数据产生的速度就会出现分析库中的数据版本举例数据源越拉越远的问题。

另一类场景是周期性地汇聚其他数据源中的数据，此时数据更新速度直接决定了灌入数据的速度。如果数据更新的灌入速度太低，而用户业务量增长导致需要灌入的数据量反而越来越大，就会导致数据灌入的时耗会越来越大。

由于Greenplum的数据存储在PostgreSQL中，而PostgreSQL的存储引擎的固有弱点导致其不得不经常做VACUUM来收回存储空间，这个VACUUM 在处理一个数据表是需要锁表，这就会导致数据表在较长时间无法用于更新，对用户来说这通常是无法忍受的缺陷。

END
